Chromatic Aberration Explained: Causes & Correction Methods
Chromatic aberration remains one of the most persistent optical challenges in spectacle lens design, yet patients rarely mention it by name. Most patients don’t understand the issue well enough to say something as specific as seeing colored fringes. Instead, they describe vague problems, like the glasses just don’t “feel” right.
For lens manufacturers and optical professionals, understanding chromatic aberration helps to solve these patient problems. It's the key to making informed material selections, setting expectations, and troubleshooting complaints that can't be resolved by checking the prescription or frame alignment.
What is chromatic aberration?
Chromatic aberration occurs when a lens does not focus all colors of light to the same point. Ophthalmic materials bend different wavelengths of light by varying amounts, and each wavelength focuses at a marginally different point. This can result in the wearer seeing a blurred image with unwanted color distortion.

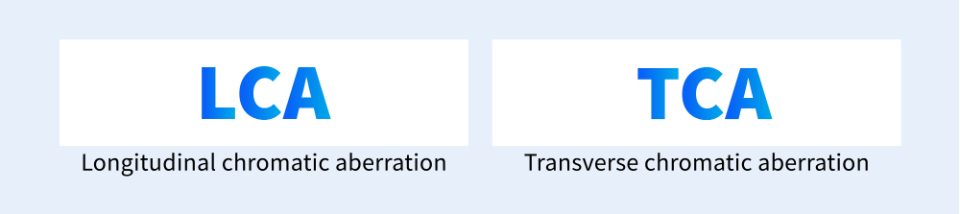

There are two main forms of chromatic aberration:
1. Longitudinal chromatic aberration (LCA)
This form of chromatic aberration occurs along the optical axis when different wavelengths focus at different distances from the lens. Blue wavelengths focus slightly closer to the lens than red wavelengths, creating a subtle halo effect around high-contrast objects. Though the brain often corrects for small disruptions, in high-power prescriptions (particularly above ±6.00D), this longitudinal spread becomes more pronounced, contributing to reduced contrast sensitivity.
2. Transverse chromatic aberration (TCA)
Transverse chromatic aberration occurs when different wavelengths of light focus at different lateral positions on the retina. It happens when the eye looks away from the optical center. It’s the most clinically significant form of chromatic error in ophthalmic lenses.
When a wearer looks away from the optical center of a lens, a prism is induced. According to Prentice’s Rule, the magnitude of this prism increases with both lens power and distance from the optical center. Because each wavelength of light is refracted slightly differently by the lens material, this prismatic effect is not the same for all colors.
The result is a wavelength-dependent displacement that gets worse toward the periphery of the visual field. This visible lateral separation is perceived by the wearer as color fringes around high-contrast edges.
Prism is the mechanism by which TCA becomes visible. This visibility depends on several factors, including lens power, distance from the optical center, the Abbe value of the material, and the viewing distance. Patients with higher prescriptions or lower-Abbe materials are typically more sensitive to these effects, particularly in peripheral vision.
Causes of chromatic aberration
Several interacting factors determine whether aberrations become significant enough to bother a patient.
1. Material refractive index and Abbe value
Every lens material has an Abbe value (V-number), which quantifies how its refractive index changes across different wavelengths of light
- High Abbe (i.e., CR-39 at 58): less chromatic aberration, more visual comfort.
- Low Abbe (i.e., 1.74 high-index at ~32): greater chromatic aberration, more color separation.
Typically, higher-index materials used to reduce lens thickness also have a lower Abbe value.
2. Lens design and prescription
Lens designs and prescriptions significantly influence whether chromatic aberration is present. Some designs and prescriptions are more prone to causing chromatic aberrations than others.
- Progressive addition lenses: Most PAL designs include a prism reference point in the corridor rather than a true optical center in the distance zone. Without a true prism-neutral zone, the patient will experience prism, even when looking straight ahead.
- Single vision vertices: Proper centering and accurate measurements ensure patients access a true prism-free zone. However, patients with longer vertex distances encounter more prism for equivalent angular gaze shifts, making material selection more critical
- Prism effects: High prescriptions and decentered lenses induce prism, which separates colors. The stronger the prescription or the greater the decentration, the more noticeable this chromatic spread becomes.
3. Lens thickness and geometry
Thicker lenses, especially in higher minus powers, tend to exacerbate off-axis aberrations because this type of lens refracts light rays more steeply. This increases the separation of colors and makes chromatic fringes more noticeable in the periphery.
Aspheric and atoric designs are often used to counteract this by flattening the lens curves to control oblique aberrations and reduce peripheral distortion. However, while these design strategies improve clarity and comfort, the foundational level of chromatic aberration is still governed by the Abbe value of the lens material. Thinner lenses and lens geometry can refine performance, but the lens material still sets the optical “ceiling.”
4. Viewing distance
When a person wearing eyeglasses views a near object, the amount of prismatic effect is small. For distant objects, the prismatic effect becomes greater, especially for patients with stronger prescriptions. As the viewing distance increases, the width of the color fringes also increases, causing more visible blurring and color separation. This phenomena helps explain why patients may pass all in-office tests yet struggle with real-world vision.
Methods for reducing chromatic aberration
Selecting different materials remains the primary method for minimizing and mitigating chromatic aberrations.
When prescription power exceeds ±4.00D, ECPs should consider materials with an Abbe value over 40, such as 1.60, to mitigate chromatic aberration while also ensuring a good balance with lens thickness. For prescriptions under ±3.00D, standard plastics or mid-index materials with Abbe values above 45 will provide good optical clarity, with less concern for thickness reduction.
Not defaulting to high-index unless cosmetic or weight demands require it also helps minimize chromatic aberrations.
Precise optical centering maximizes the prism-free viewing area. While this seems obvious, rushed measurements or frame adjustments that alter vertex distance can shift optical centers away from the patient's visual axis.
Carefully considered lens designs will also improve the patient’s experience. Atoric and aspheric designs reduce overall aberrations, which helps the eye to better tolerate remaining chromatic effects. Additionally, a customized PAL corridor placement can reduce perceived fringes.
Labs and ECPs can combine multiple strategies in order to minimize patient complaints.
IOT’s approach to improving visual aberrations
IOT creates industry-leading lens technologies that improve vision acuity for wearers through natural, stable, and effortless designs. By prioritizing how people actually see, move, and interact with their environment, IOT builds technologies that minimize common visual disruptions.
Core to this approach is a commitment to optimizing how light is processed across the entire lens, not just in isolated zones. By carefully managing how vision transitions from distance to near, and how the eye perceives clarity in motion and at the periphery, IOT designs lenses that reduce visual strain and improve overall comfort.
The result is a sleek, balanced visual experience, one where clarity feels consistent, transitions feel smoother, and improved visual acuity feels natural. Instead of battling distortion, blur, or instability, patients benefit from vision that supports them throughout their day, whether they’re working, driving, or shifting between tasks. Ultimately, IOT’s innovative technologies deliver better control over how vision is delivered, transforming each wearer’s lenses into a seamless extension of their natural sight.
